Why Pickleball Paddles Delaminate: Core Crush, Bond Failure, Symptoms & Prevention

“Delamination” has become a catch-all word for almost any paddle that changes sound or feels unusually lively.

That is not precise enough.

A paddle can have face-to-core bond separation, internal core crush, perimeter separation, foam movement, local face damage or normal break-in without the same failure mechanism. Correct diagnosis matters for players, warranty teams and manufacturers.

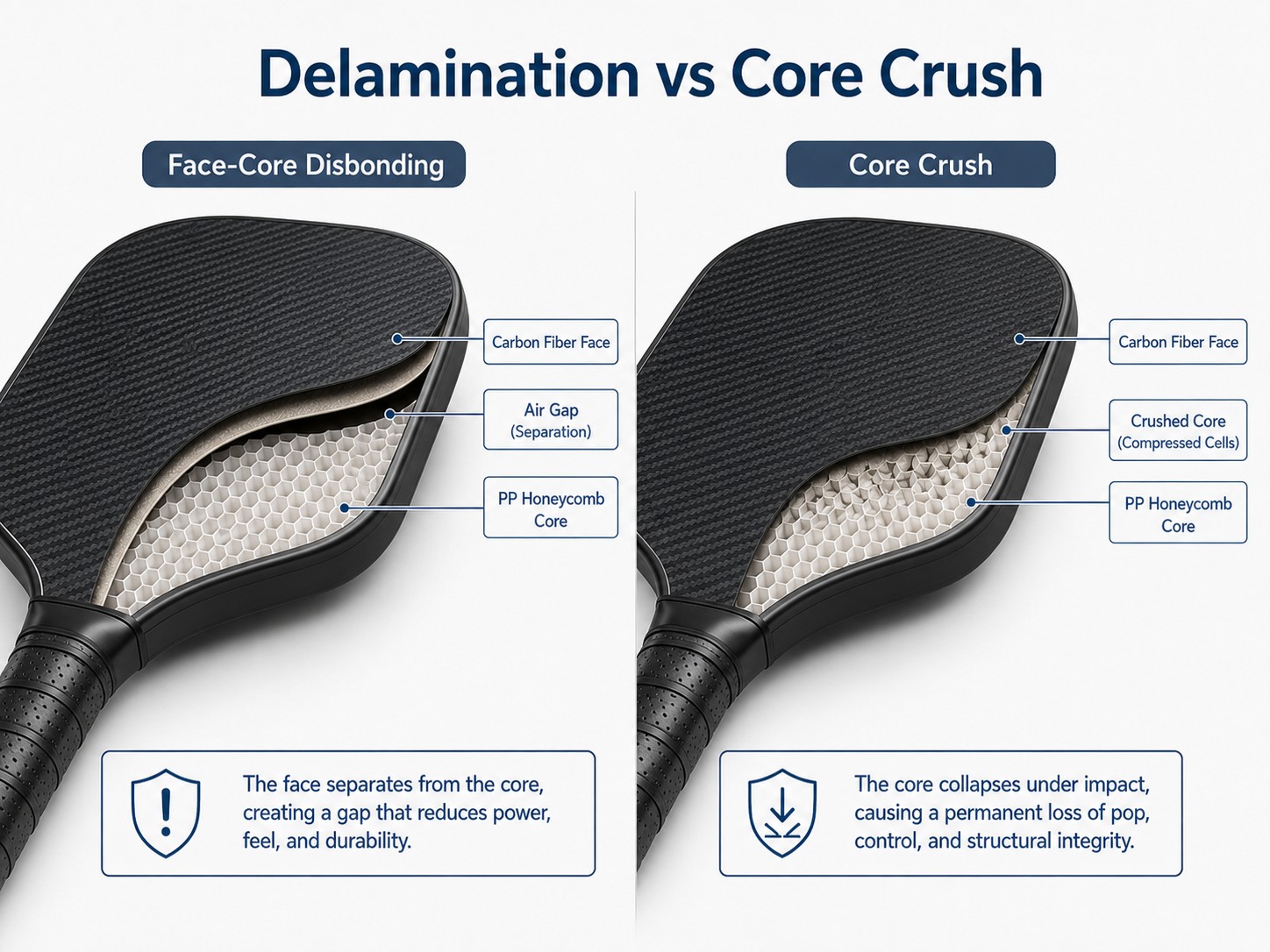

Distinguish Delamination From Core Crush

What Delamination Actually Means

In composites, delamination is separation between bonded layers or interfaces.

In a paddle, that can occur between face laminate and core, within a laminate or at another bonded interface.

Do not use the term for every performance change.

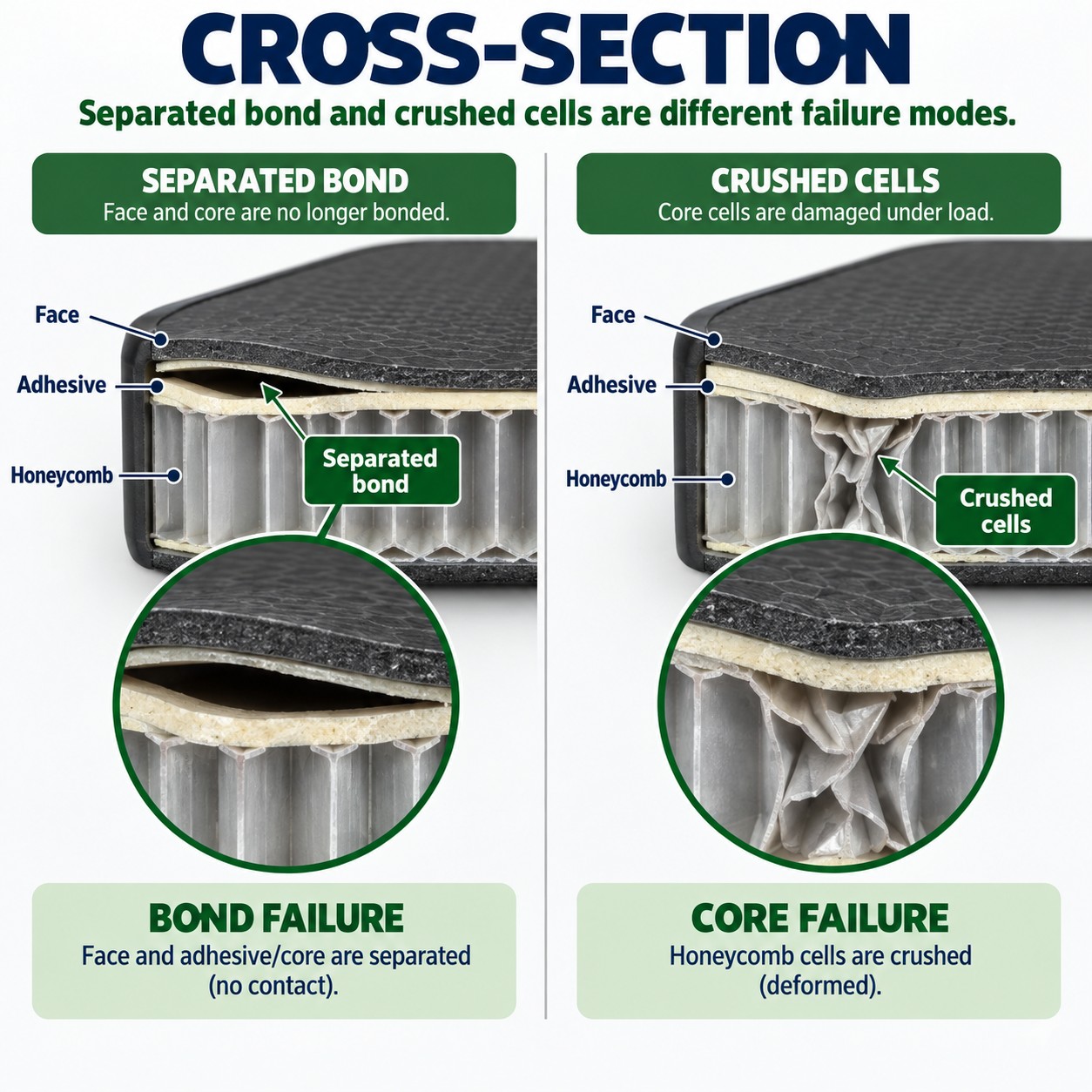

What Core Crush Means

Honeycomb cell walls can deform or collapse locally under repeated loading or abnormal impact.

Core crush can change local support even if the face remains bonded.

It is a different failure from adhesive separation.

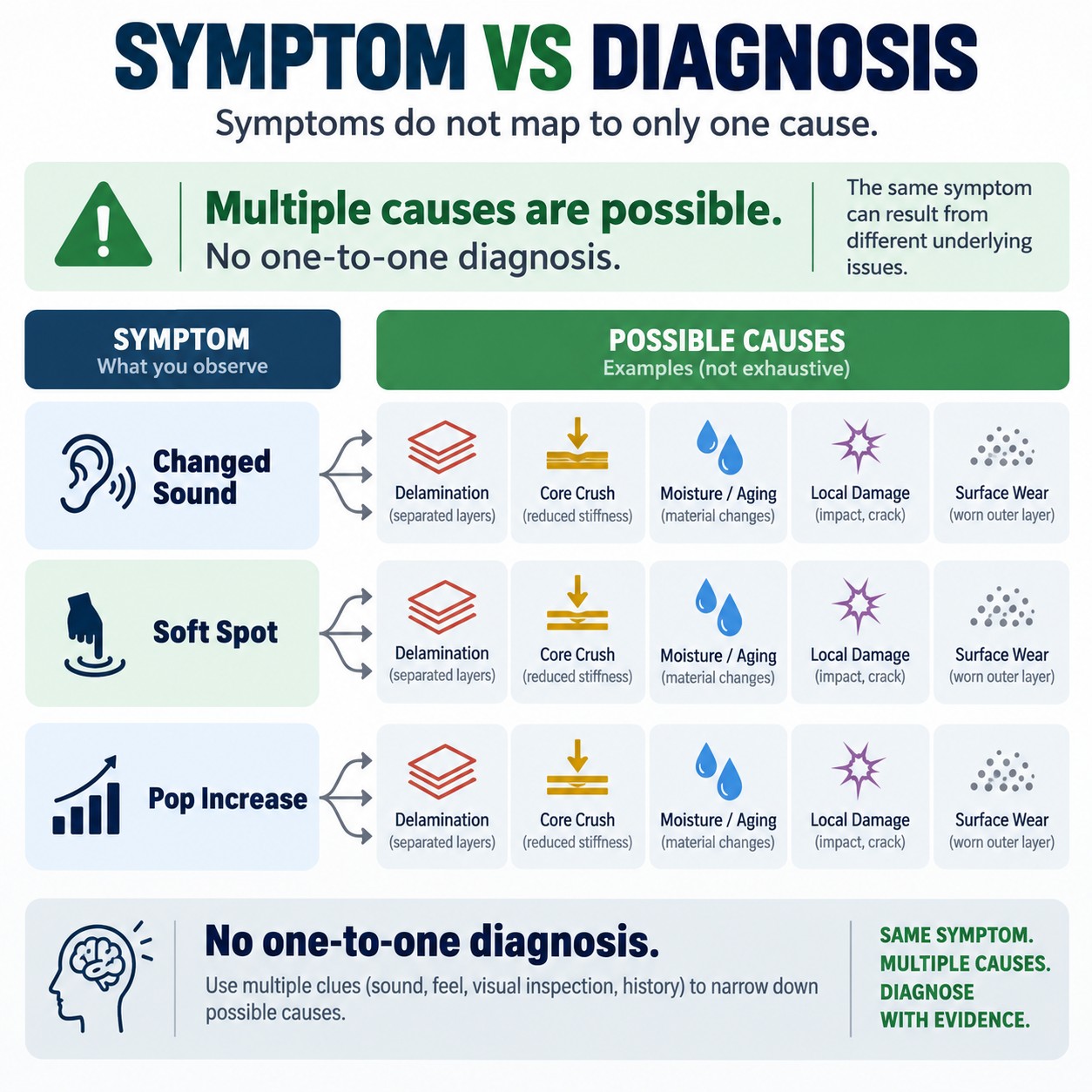

Why the Paddle May Sound Different

Changes in local support, voids or separated interfaces can alter vibration and sound.

A sound change is a symptom, not a diagnosis.

Compare with a known-good sample and inspect further.

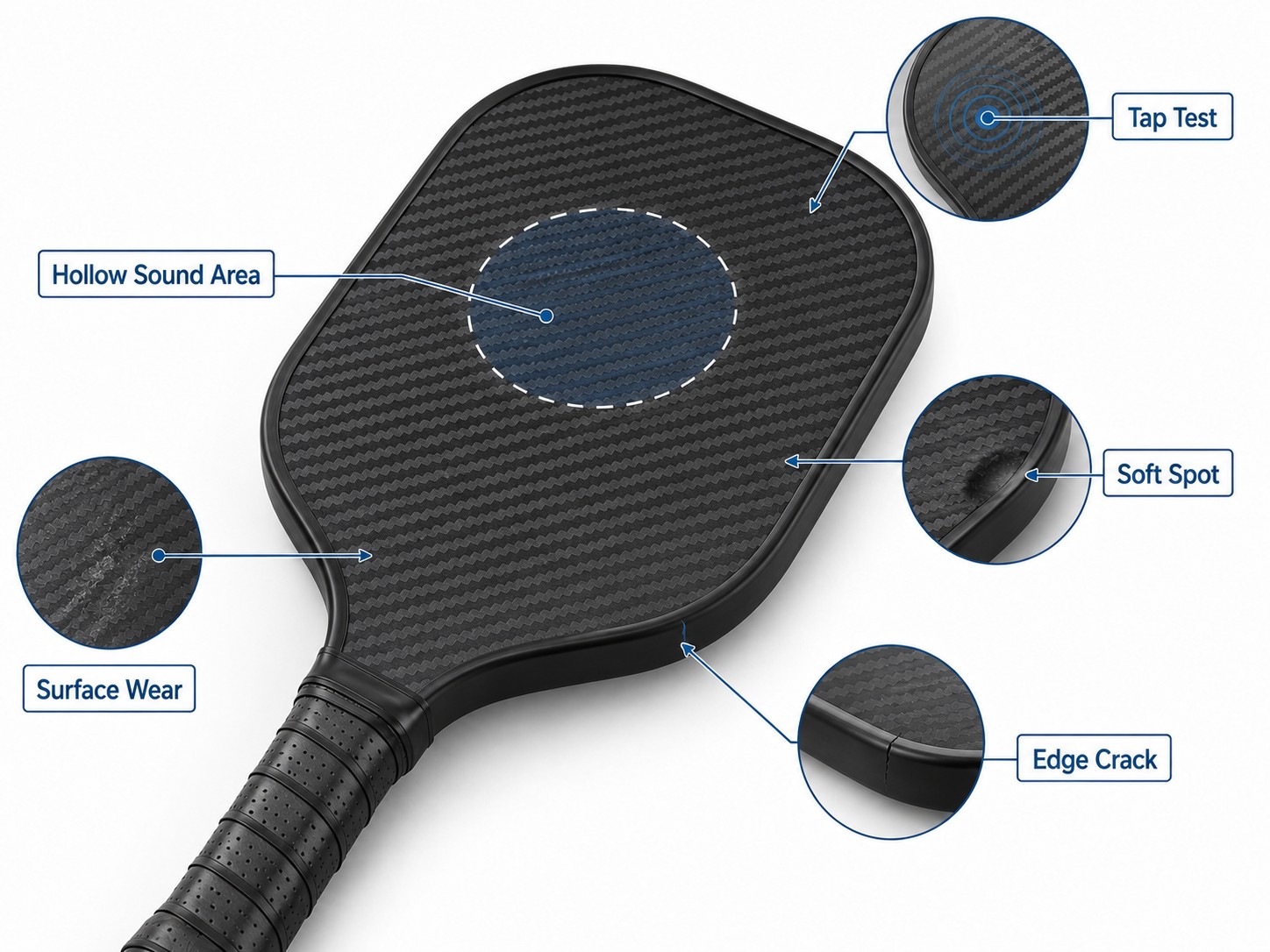

Exterior Symptoms

Potential warning signs include bubbling, soft spots, edge separation, visible cracking or unusual flex.

Many internal problems have no obvious exterior sign.

Do not deliberately flex or damage the paddle to “test” it.

Diagnose the Failure Mechanism

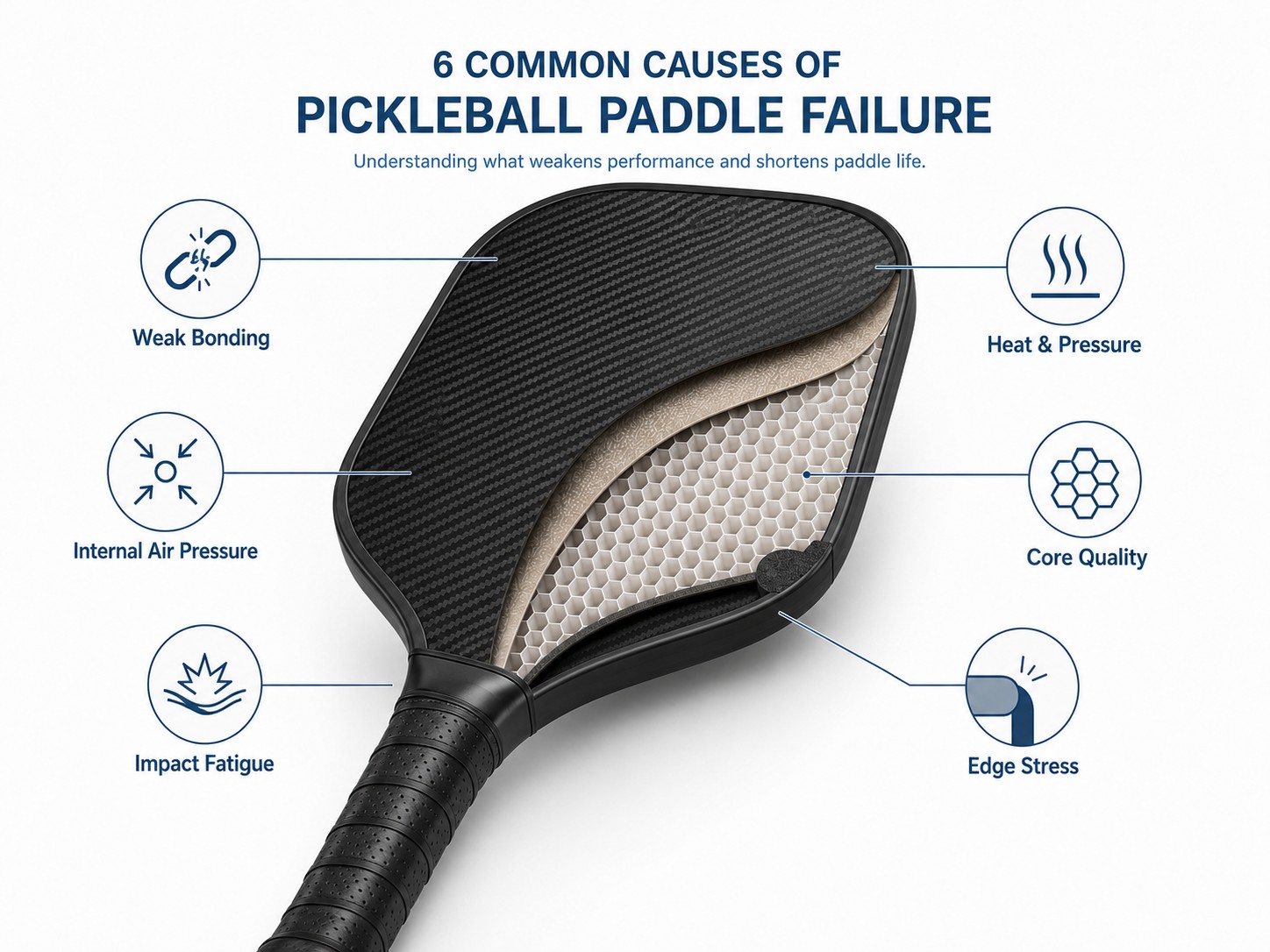

Manufacturing Causes

Risk can come from poor adhesive coverage, contamination, wrong cure, uneven pressure, crushed core during forming, foam misplacement or material substitution.

Root cause requires process records and failed-sample inspection.

One returned paddle does not prove a batch-wide cause.

Use and Impact Causes

Edge impacts, heat exposure, repeated hard contact and storage abuse can contribute to damage.

Normal play also creates fatigue over time.

Warranty evaluation should distinguish manufacturing defect from wear/impact history.

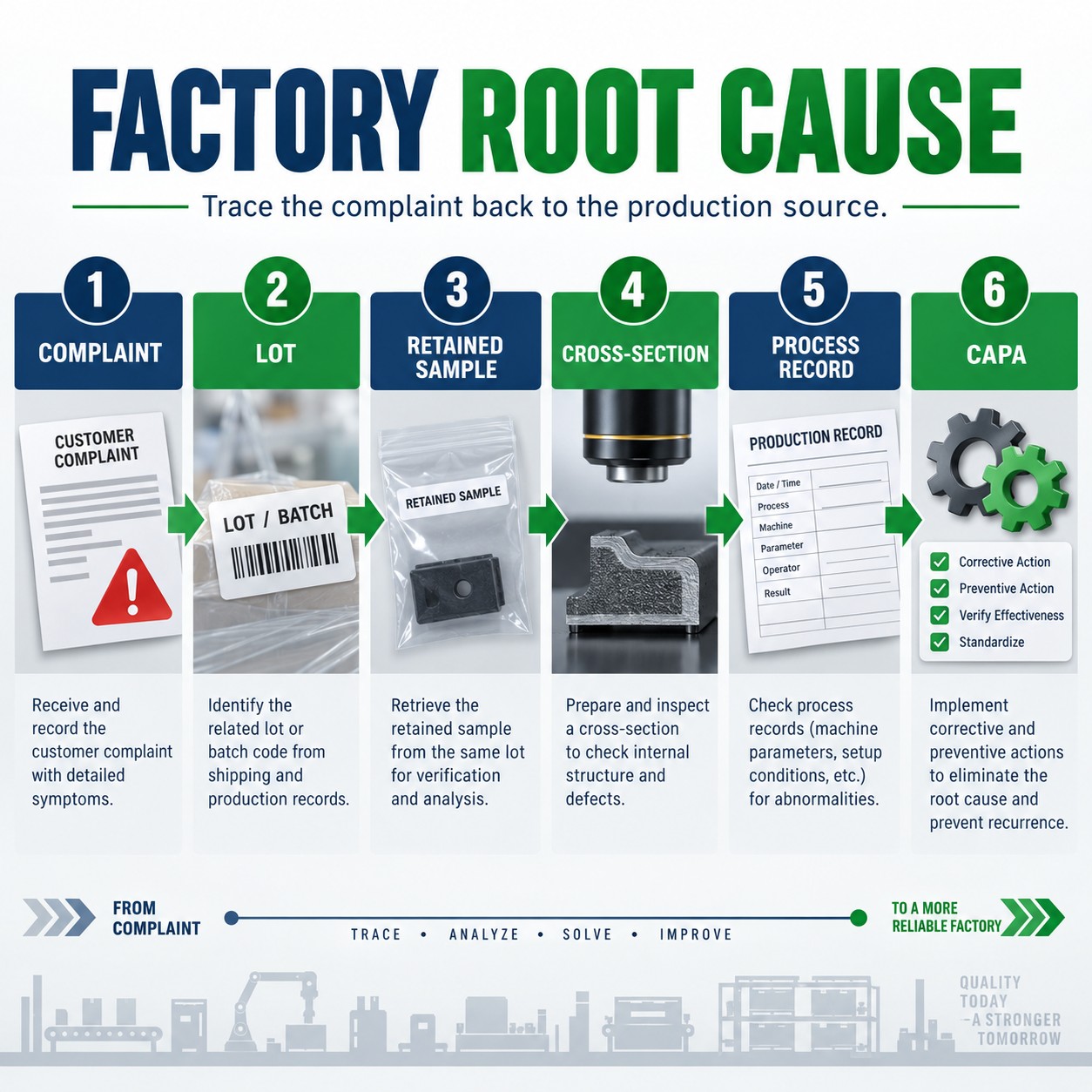

How Factories Diagnose

Use retained lot samples, weight/dimension records, non-destructive checks where available and destructive cross-sections when necessary.

Map the failure location to material lots and process history.

Good traceability turns a complaint into engineering data.

Prevention

Control incoming core flatness/density, adhesive application, surface preparation, cure, pressure, foam placement and handling.

Pilot new constructions and condition samples.

Keep change control after certification.

Contain Lot-Level Risk

When Players Should Retire a Paddle

Stop using a paddle with visible structural damage, loose components or sharp edges.

For subtle performance change, follow the manufacturer’s warranty/inspection process.

Do not continue modifying a potentially damaged product to chase performance.

Failure-Mode Decision Tree

If there is visible separation between bonded layers, investigate delamination. If the face remains bonded but a local area has lost support, investigate core crush. If the change is primarily at the perimeter, inspect edge/foam interfaces. If there is only gradual surface polish, treat it as wear unless other symptoms exist.

A decision tree reduces the tendency to call everything delamination.

Lot-Level Escalation Rule

One isolated failure calls for investigation. Multiple similar failures from the same lot call for containment and broader sampling.

Define the trigger before problems occur. This allows warranty and production teams to respond consistently rather than based on social-media attention.

Design for Inspection

During development, retain cut samples showing healthy bond lines and core geometry. Photograph them with lot/version information.

When a field failure returns months later, the engineering team then has a real baseline for comparison.

Practical Editorial / Decision Notes

Lot-level escalation should be defined before failures occur. One isolated return triggers investigation; several similar failures from one batch may justify containment, broader sampling and a process review.

Retaining healthy cross-sections and lot samples gives engineering a baseline when a field failure returns months later.

Design for Inspection and Prevention

Turn Returns Into Failure-Mode Evidence

“Delaminated” should not be the default label for every paddle that sounds different or feels hotter. Warranty and engineering teams need a common failure taxonomy so bond separation, core crush, perimeter movement and normal wear are investigated differently.

Retained lot samples and healthy cross-sections make that possible. When several similar claims appear from one production lot, the brand can contain inventory and investigate a defined mechanism instead of arguing case by case.

• Use symptom → possible mechanism → evidence → disposition.
• Define a lot-level escalation trigger.
• Keep healthy reference sections for comparison.

Frequently Asked Questions
